HI-A3 High-Intensity Aviation Obstruction Light

Description

HI-A3 High-Intensity Aviation Obstruction Light

Introducing the HI-A3, a pinnacle of lighting technology crafted for aviation safety. Emitting a continuous white flash throughout the day and night, it’s expertly designed to mark structures surpassing 150 meters. The heart of this light is the ultra high-intensity CREE LED, chosen for its longevity and unparalleled performance. Its proprietary reflector design enhances brightness, ensuring fewer LEDs deliver greater luminosity.

Compliance Standards:

• ICAO Annex 14 Volume 1, Sixth Edition, 2013, table 6.3 High Intensity Type A Obstruction Light
• FAA L-856

Distinguished Features:

Electrical:

• Employs CREE’s ultra-high-intensity LED, optimizing energy consumption.
• Versatile power supply options: DC (48V) or AC (110V, 240V).

Physical Attributes:

• Distinctive design complemented by a UV-protected polycarbonate lens, ensuring optimal light convergence and LED conservation.
• Eye-catching UV-protected, bright yellow base enhances visibility.
• The base, crafted from powder-coated die-cast aluminum, offers exceptional corrosion resistance and safeguards against shocks and vibrations.
• A specially designed valve ensures air circulation, preventing overheating, while simultaneously blocking water ingress.

System Specifications:

• Incorporates a built-in photocell for adaptive day, twilight, and night operations.
• Designed with surge and lightning protection mechanisms.

Additional Customizations:

• Remote alarm monitoring.
• Infrared LED integration for night vision goggle compatibility.
• GSM cellular monitoring.
• RS485 communication module.
• Adjustable flashing rates: 40, 50, or 60 flashes per minute.
• GPS-enabled synchronized flashing.

Applications: The HI-A3 high-intensity light is an indispensable addition to skyscrapers, towering chimneys, communication towers (including telecom, GSM, microwave, and TV), tall poles, tower cranes, wind turbines, and more. When structures soar above 150 meters, the HI-A3 often collaborates with lower-mounted low and medium-intensity lights to ensure comprehensive safety.

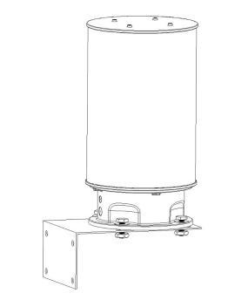

Dimension(mm):                                                                                                       Installation Guider
