HI-A2 High-intensity Obstruction LED Light

Description

HI-A2 High-Intensity Aviation Obstruction LED Light

Designed for aviation safety, the HI-A2 is a premier high-intensity obstruction light that continuously radiates a white flash around the clock. Tailored to demarcate towering structures surpassing 150 meters, this LED utilizes advanced CREE LED technology. Its cutting-edge reflector board design amplifies luminosity while using fewer LEDs.

Compliance Standards:

• CAO Annex 14 Volume 1, Eighth Edition, 2018, table 6.3 High Intensity Type A Obstruction Light
• FAA L-856, L-857
• CAAC MH6012-2015 Aviation Obstruction Light, MH 5001—2013 Aerodrome Technical Standards

Key Features:

Electrical:

• Boasts power-efficient CREE ultra-high-intensity LEDs.
• Adaptable power supply with DC (48V) and AC options (110V, 240V).

Physical Attributes:

• Showcases a bespoke design with a UV-shielded polycarbonate lens for optimal light focus and LED efficiency.
• Eye-catching, UV-resistant, bright yellow base for augmented visibility.
• Durable powder-coated die-cast aluminum base designed for anti-corrosion, shock absorption, and vibration resistance.
• Strategic vent placement ensures air circulation, moderates light temperature, and restricts water and steam intrusion.

System Specifications:

• Integrated photocell for adaptive day, twilight, and night operations.
• Surge and lightning safeguards in place.
• Incorporates GPS technology for synchronized flashing.

Customization Options:

• Remote monitoring with dry contact alarm output.
• Infrared LED integration for night vision goggle operations by pilots.
• Flexible flashing rates: 40, 50, or 60 flashes per minute.
• Eco-friendly solar power option available.

Ideal Applications: The  HI-A2 high-intensity light is the preferred choice for skyscrapers, towering chimneys, communication towers (including telecom, GSM, microwave, and TV), tall poles, tower cranes, wind turbines, and more. Especially pertinent when obstacle height is above 150 meters, it often pairs with low and medium-intensity lights positioned lower on structures.

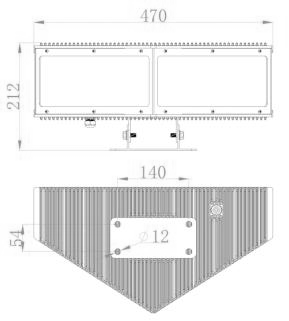

Dimension(mm):

Installation Guider

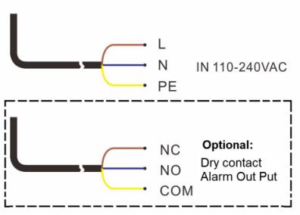

Wiring diagram
