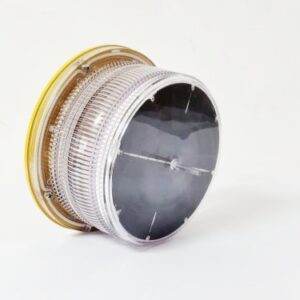

AIS Floating Buoy Solar Navigation Light

Category Tags , ,

This new-generation integrated LED light combines solar panels, batteries, light devices, and communication modules. It can work in tandem with AIS, Beidou, and GPRS communication modules to form a comprehensive navigational device that reports position, solar panel status, battery, and light parameters back to a central system. Ideal for seamless integration with current maritime safety management systems.



QUOTE FREE

Description

Product Manual: Integrated LED Navigation Light

Communication Methods: Beidou, AIS, GPRS, Beidou + AIS, Beidou + GPRS

Product Features:

  • Ease of Installation: Integrated design for easy setup
  • Intelligent Charging and Discharging: Internal maintainable lithium battery
  • Accuracy: Digital photosensor, low power consumption design, and long communication distance
  • Durability: Strong resistance against water, corrosion, and UV rays.

Communication Module:

  • Modulation Method: GMSK/FSK
  • Frequency Range: 156.025MHz – 162.025MHz
  • Average Power Consumption: ≤0.05W
  • Transmitting Power: ≤6W (AIS), 5W (Beidou), ≤2W (GPRS)
  • Receiving Sensitivity: ≤-107dBm
  • Message Types: Message 21, 6 adjustable, multiple built-in modes
  • Operating Modes: Mode 3 (SOTDMA, autonomous operation)
  • Battery: 346692WH (3672 units)
  • DC: 2.6AH@3.7V

Application Range:

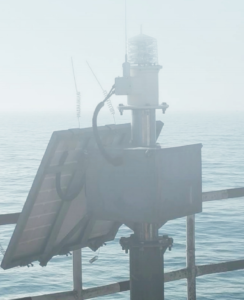

Suitable for use on light buoys, light stakes, lightships, lighthouses, and marine platforms.





Additional information

Light Source

LED
Color

Amber, Blue, Green, Red, White
Lens material

Polycarbonate
Body Material

Die-casting Aluminum
Automatic Light Control (ALC)

Turns on at night and off at daytime automatically
Energy Management System (EMS)

Intelligent microprocessor
Protect Level

IP68
Synchronization

Optional
Wind speed

Up to 150mph (240kph)
Temperature

-45C˚ ~ +70C˚
Brightness

Adjustable, 0—5 levels
Charging Current

Approx 400Ma
Emission Angle

Floating Light ≥8°, Fixed Light ≥2.5°
Flash Patterns

256 adjustable flashing patterns
Working Voltage

DC 9.5V-12.6V (Powered by tri-element lithium battery, maintainable)
Number of Light Layers

One or Two Layers, controllable
Intensity

3—7.9 nm
Continuous Rainy Days

≥25 days
